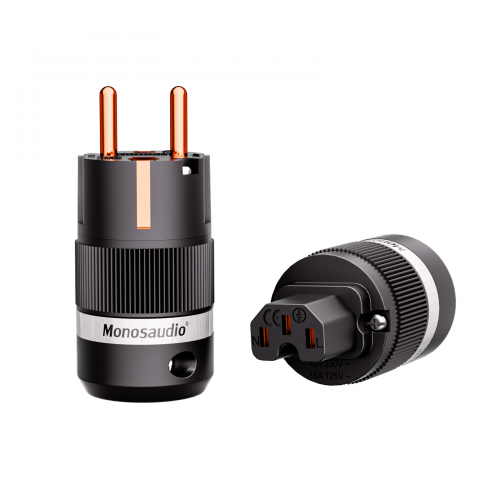

Model: E100

Conductor:99.998% Pure Copper


Dimensions: 64mm H X 38.5mmφ Overall Length:83.6mm

Connections: Hex Screws

Suitable Wire: Max.4.5mm(11 to 14 AWG)

Rating: 16A 250V A.C.

Install The Cable Diameter: 6mm-18mm

Model: F100

Conductor: 99.998% Pure Copper


Dimensions: 49mm H X 38.5mmφ  Overall Length:72mm

Connections:Set Screws

Suitable Wire: Max.6mm(10 to 14 AWG)

Rating: 15A/125V 10A/250V

Install The Cable Diameter: 6mm-18mm
