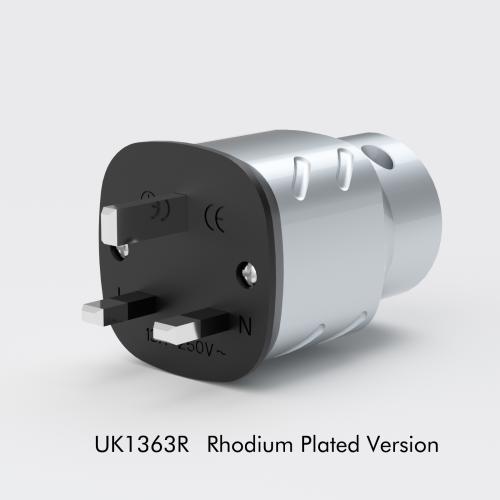

Model: UK1363R

Conductor:99.998% Pure Copper

Body:Aviation Aluminum-Magnesium Alloy

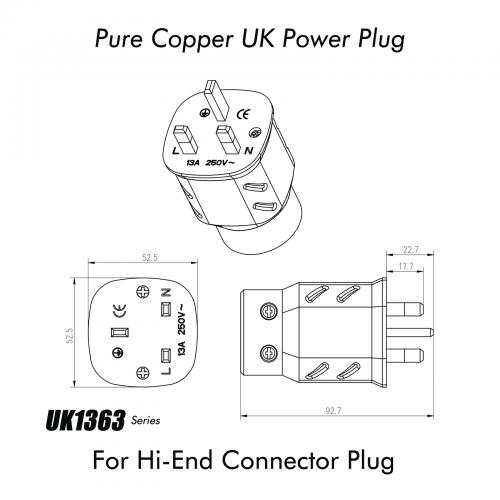

Dimensions: 92.7mm H X 52mmφ Overall Length：70mm

Connections: Hex Screws

Suitable Wire: Max.4.5mm(11 to 14 AWG)

Rating: 13A 250V A.C.

Install The Cable Diameter: 6mm-18mm

Pins Plating:

4 Layer Plated Process :

1. Oxygen Free Copper Plated

2. Silver Plated

3.Palladium Plated

4. Rhodium Plated
