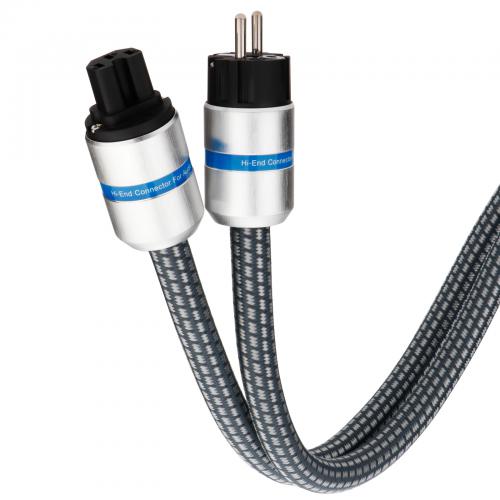

Cable Parameter:
Model:P902
Conductor: 99.998% OFC Copper
Wire diameter: 5.5Sq (7core x1mm)
Structure: 3P cabtire
Insulator（inner）: Teflon+Polyvinyl chloride
Outer Sheath: Polyurethane
Shield: 1st：100% Aluminum foil
2nd：100% Aluminum foil
O.D. :17.0mm
Rated V/A: 600V / 30A

Connector Plug Parameter:
Model: E106R
Conductor:99.998% Pure Copper
Body:Nylon/Fiberglass
 (Bayer-2805)
Dimensions: 73.5mm H X 40mmφ Overall Length：92.5mm
Connections: Hex Screws
Suitable Wire: Max.4.5mm(11 to 14 AWG)
Rating: 16A 250V A.C.
Install The Cable Diameter: 10mm-20mm
4 Layer Plated Process :
1. Oxygen Free Copper Plated
2. Silver Plated
3.Palladium Plated
4. Rhodium Plated

Model: F106R
Conductor: 99.998% Pure Copper
Body:Nylon/Fiberglass
Dimensions: 58mm H X 40mmφ  Overall Length：80.5m
Connections:Set Screws
Suitable Wire: Max.6mm
(10 to 14 AWG)
Rating: 15A/125V 10A/250V
Install The Cable Diameter: 10mm-20mm
4 Layer Plated Process :
1. Oxygen Free Copper Plated
2. Silver Plated
3.Palladium Plated
4. Rhodium Plated
