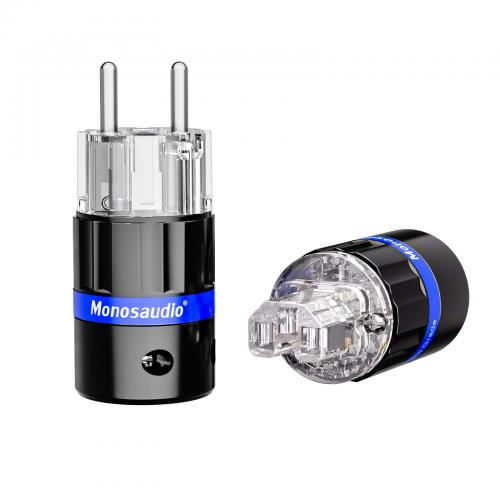

Model: E105R
Conductor:99.998% Pure Copper
Body:Nylon/Fiberglass
Dimensions: 70mm H X 38.5mmφ Overall Length:88.5mm
Connections: Hex Screws
Suitable Wire: Max.4.5mm(11 to 14 AWG)
Rating: 16A 250V A.C.
Install The Cable Diameter: 10mm-20mm
Pins Plating:
4 Layer Plated Process :
1. Oxygen Free Copper Plated
2. Silver Plated
3.Palladium Plated
4. Rhodium Plated


Model: F105R
Conductor: 99.998% Pure Copper
Body:Nylon/Fiberglass
Dimensions: 54mm H X 38.5mmφ  Overall Length:77mm
Connections:Set Screws
Suitable Wire: Max.6mm
(10 to 14 AWG)
Rating: 15A/125V 10A/250V
Install The Cable Diameter: 10mm-20mm
Pins Plating:
4 Layer Plated Process :
1. Oxygen Free Copper Plated
2. Silver Plated
3.Palladium Plated
4. Rhdoium Plated
