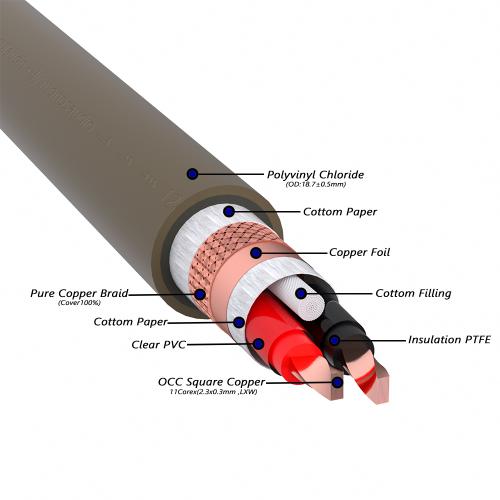

Cable Structure & Materials:
1. Outer Diameter: 18.7mm
2. Conductors:
- 11 strands of 0.12mm × 2.2mm square copper core** (TWISTED CONDURS).
3. Insulation Layers (Inner to Outer):
- Innermost Layer: PTFE (Teflon) insulation.
- Second Layer: Extruded PE (Polyethylene) insulation.
- Outer Insulation: Extruded PVC (Polyvinyl Chloride) jacket.
4. Core Configuration:
- Two-Core Design: Red and black PVC-insulated conductors.
5. Shielding & Reinforcement:
- Cotton Yarn Filler: For structural reinforcement.
- Non-Woven Fabric Layer: Additional protection and stability.
- Foil Shield: Copper foil wrapping for electromagnetic interference (EMI) protection.
- Braided Shield: Copper mesh layer for enhanced durability and EMI suppression.
